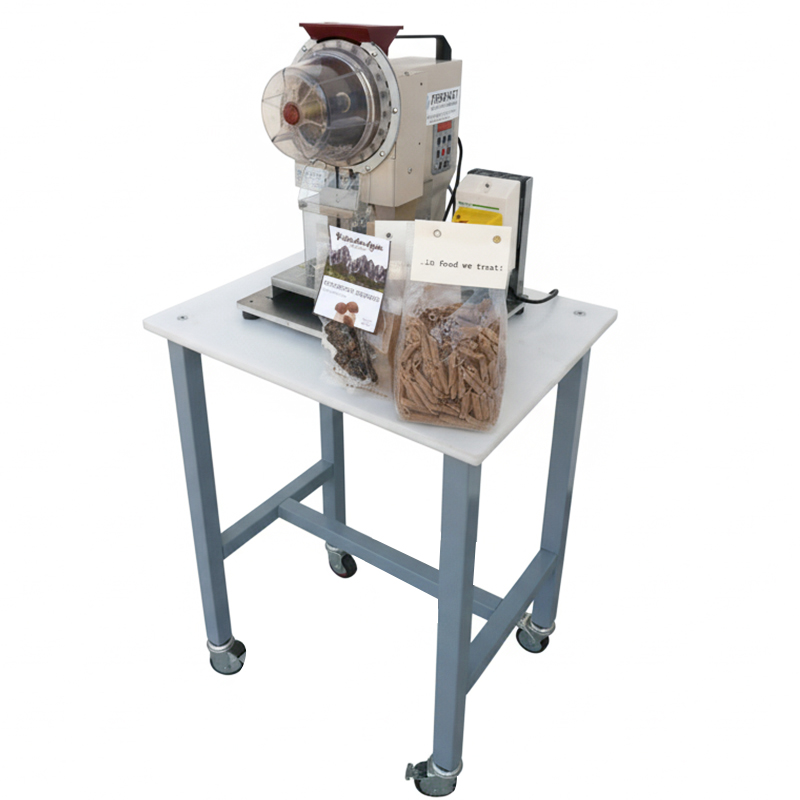

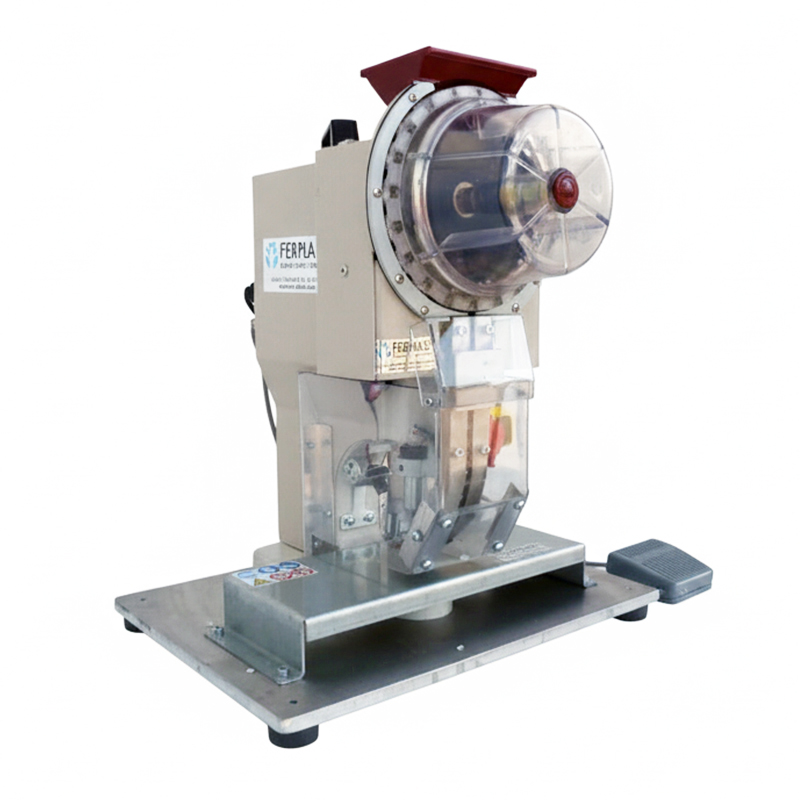

ELECTRIC BENCH-TOP EYELETING MACHINE

Single-head electric bench-top eyeleting machine designed to apply metal eyelets with a 5.5 mm internal diameter on food bags for products such as pasta, biscuits, flour, etc.

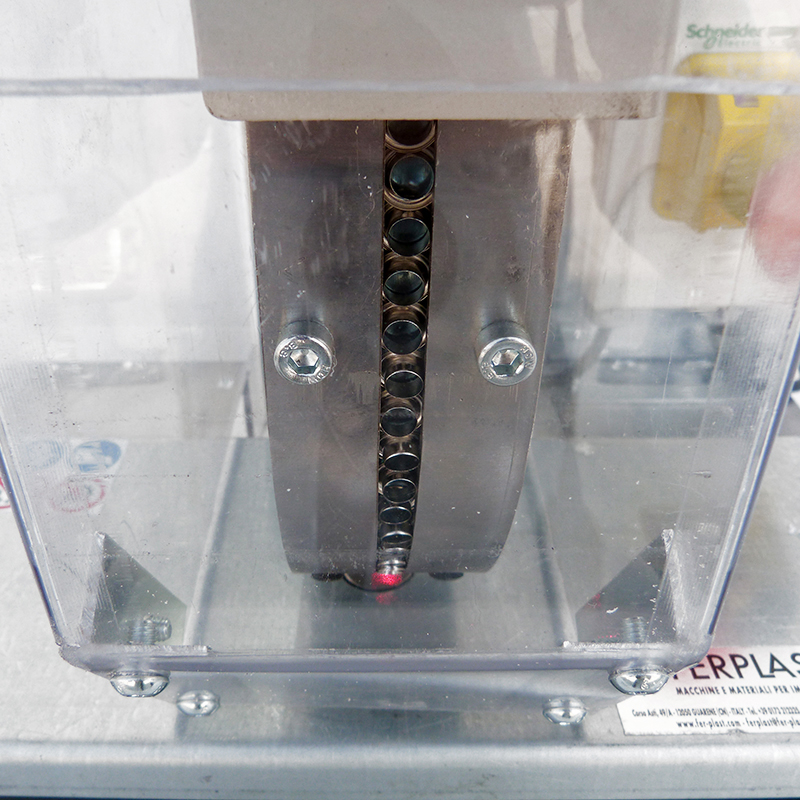

The machine is equipped with an automatic eyelet feeding system which, once loaded, continuously distributes the eyelets by rotating the feeder and correctly positioning them for application.

The eyeleting machine features a quiet and efficient electric motor, ensuring consistent performance even during prolonged use, making it suitable for working environments where a low noise level is required.

Key features:
– 100% electric operation
– Top handle for easy transport
– Direct-drive servo motor: higher precision, lower energy consumption, and improved performance
– Single precise and reliable head
– Adjustable speed

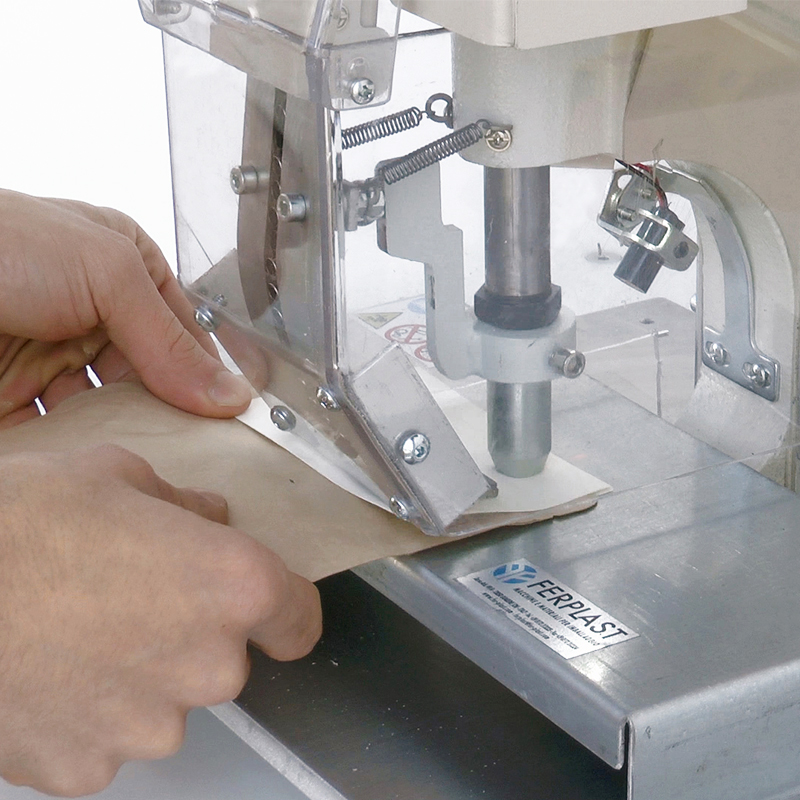

– Laser positioning system for extremely accurate eyelet placement
– Dedicated light for easy operation even on small details
– Mold position adjustment via manual forward/back rotation through display control
– Protective casing on all three sides

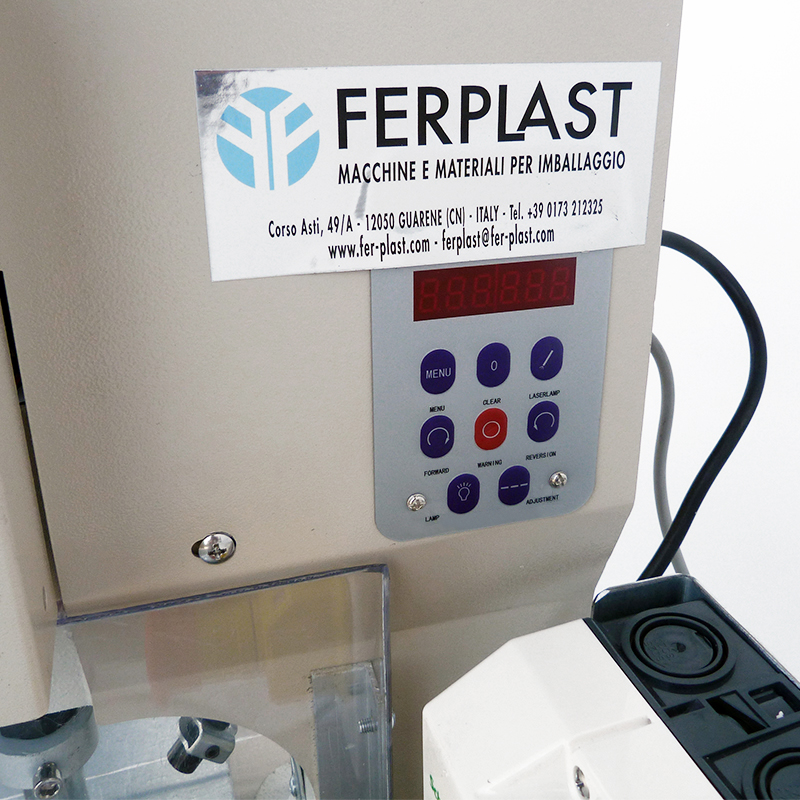

– Digital display with counter


MODEL FPOEB
Punching thickness Up to 4 mm
Working speed 80–120 pieces per minute
Voltage 220 V
Power 750 W

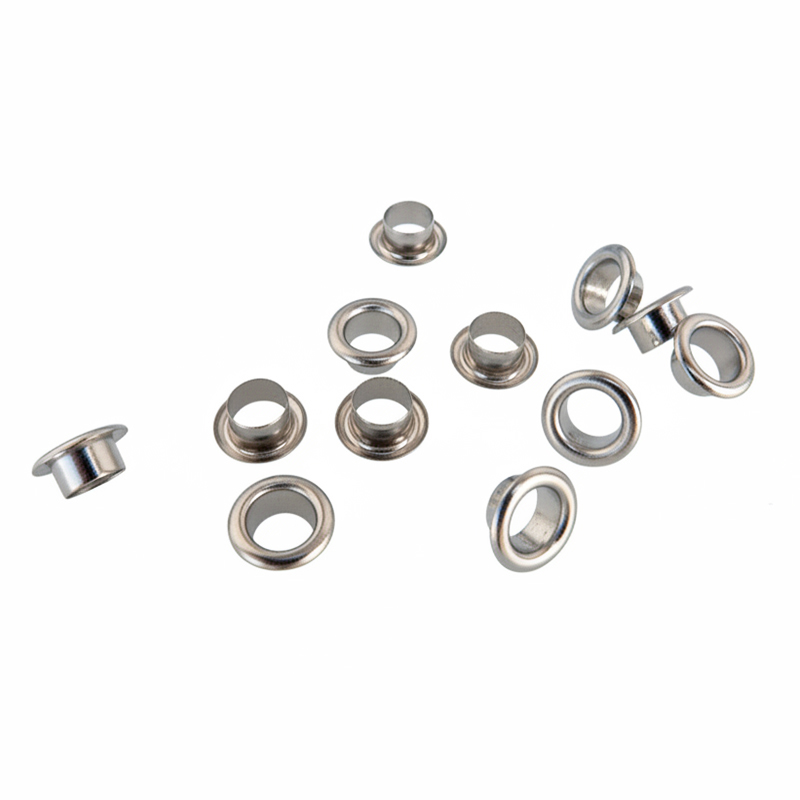

Usable eyelet inner diameter 5.5 mm (on request 8–10 mm)
Dimensions 370 x 400 x 485 mm
Weight 25.5 kg
